Machine Readable Travel Documents
Last updated
Last updated
Machine Readable Travel Document (MRTD) - official document, conforming with the specifications contained in Doc 9303, issued by a State or organization which is used by the holder for international travel (e.g. MRP, MRV, MROTD) and which contains mandatory visual (eye readable) data and a separate mandatory data summary in a format which is capable of being read by machine.
Machine Readable Official Travel Document (MROTD) - a document, usually in the form of a card of TD1 or TD2 size, that conforms to the specifications of Doc 9303-5 and Doc 9303-6 and may be used to cross international borders by agreement between the States involved.

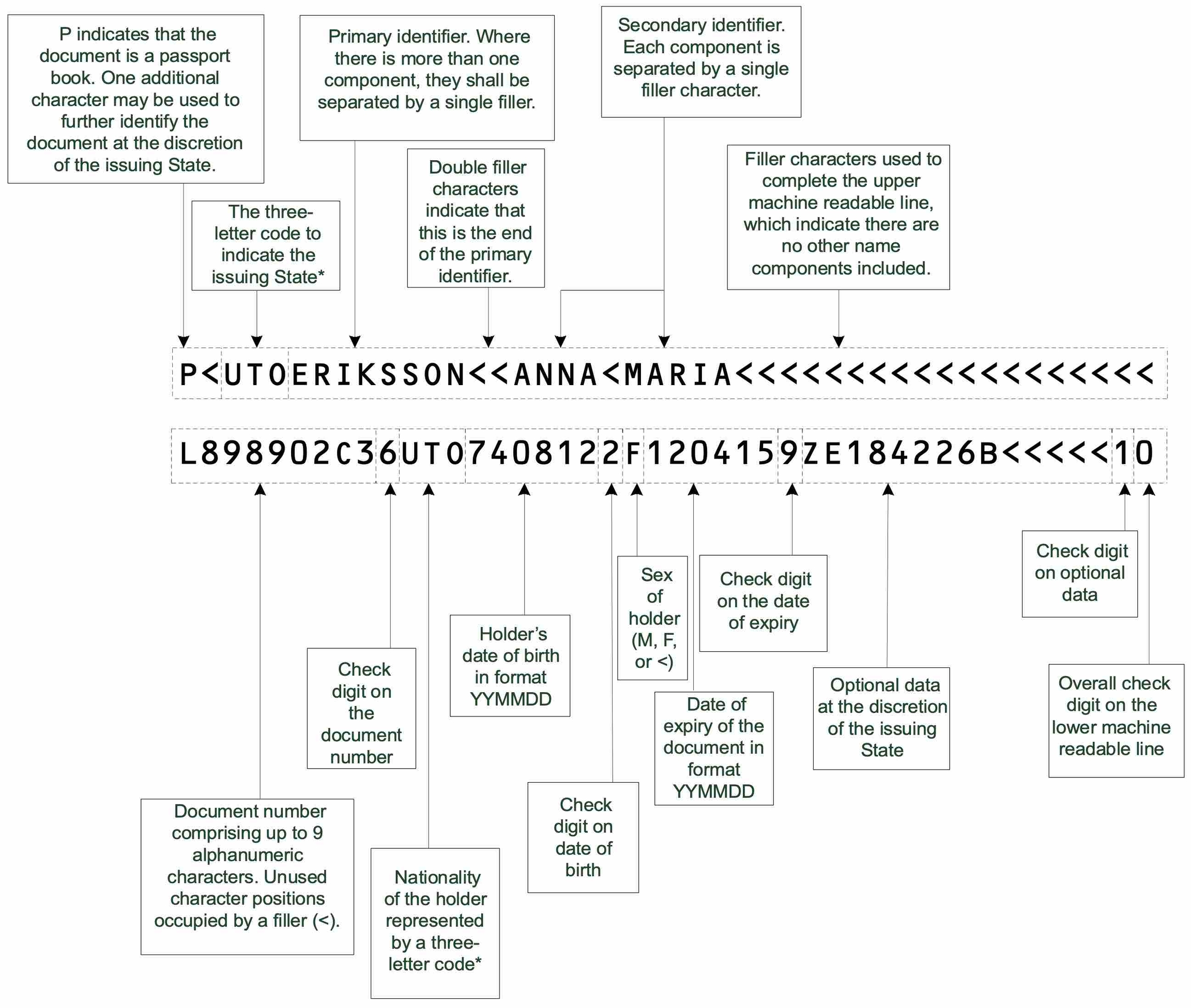

Machine Readable Passport (MRP) - a passport conforming with the specifications contained in Doc 9303-4. Normally constructed as a TD3 size book containing pages with information on the holder and the issuing State or organization and pages for visas and other endorsements. Machine readable information is contained in two lines of OCR-B text, each with 44 characters.
Machine readable zone (MRZ) - fixed dimensional area located on the Machine Readable Travel Documents (MRTD), containing mandatory and optional data formatted for machine reading using OCR methods. The data in the MRZ must be visually readable as well as machine readable.

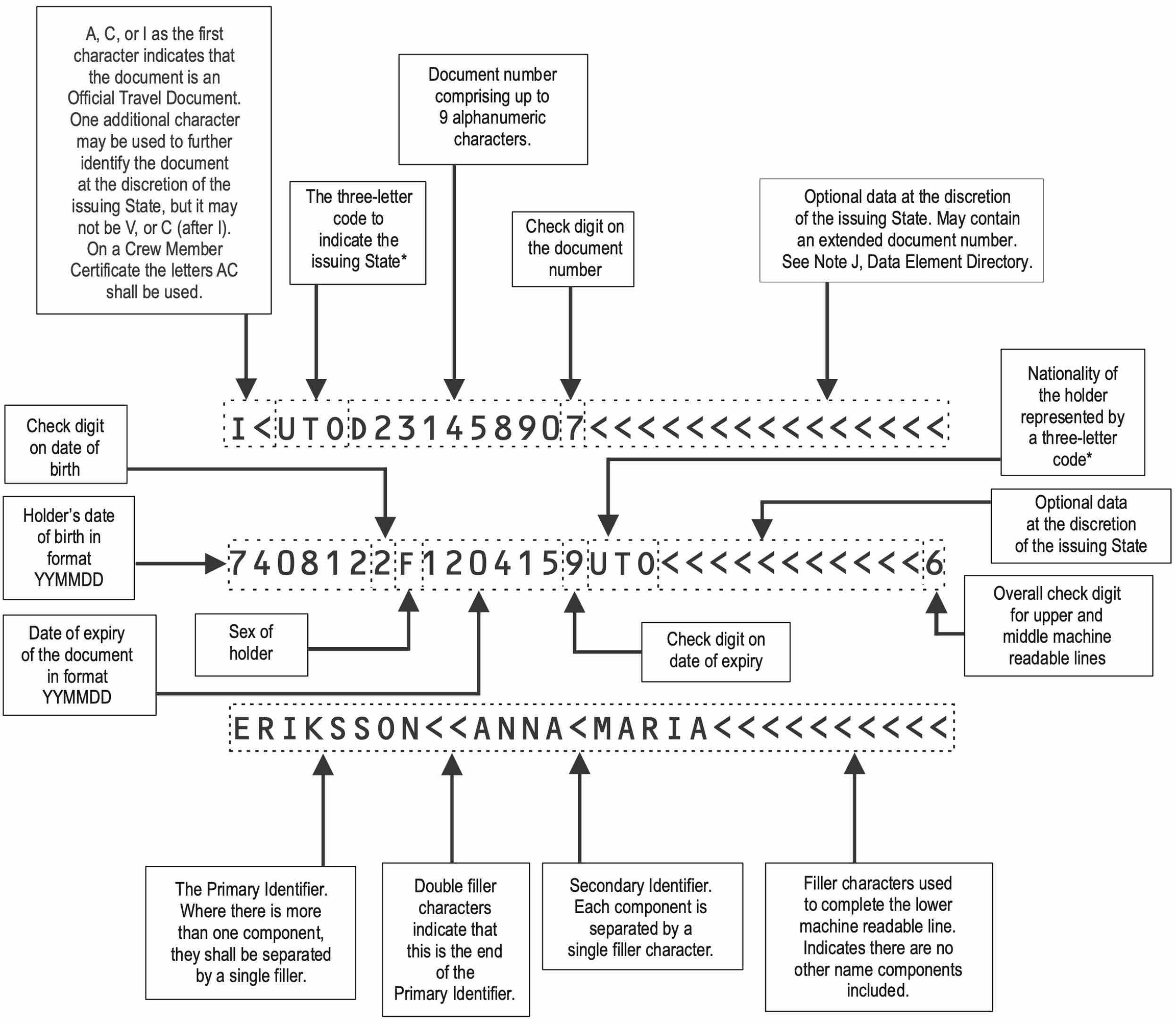

A card with nominal dimensions guided by those specified for the ID-1 type card (ISO/IEC 7810) (excluding thickness).
Note.— (*) Three-letter codes are given in Doc 9303-3.
Dotted lines indicate data fields; these, together with arrows and comment boxes, are shown for the reader’s understanding only and are not printed on the document.

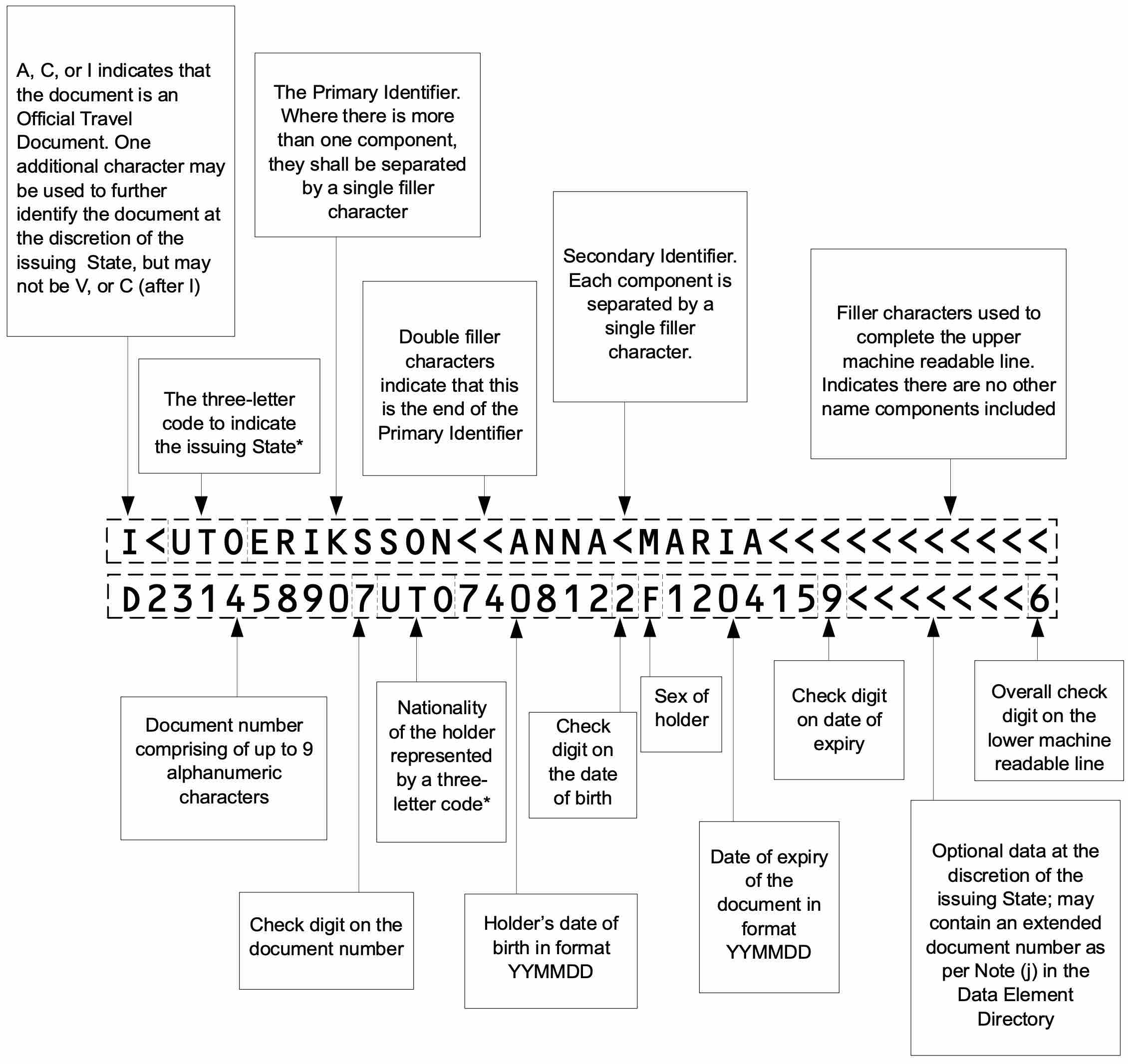

A card or label conforming with the dimensions defined for the ID-2 type card (ISO/IEC 7810) (excluding thickness).
Note.— (*) Three-letter codes are given in Doc 9303-3.
Dotted lines indicate data fields; these, together with arrows and comment boxes, are shown for the reader’s understanding only and are not printed on the document.
Note.— (*) Three-letter codes are given in Doc 9303-3.
Dotted lines indicate data fields; these, together with arrows and comment boxes, are shown for the reader’s understanding only and are not printed on the document.

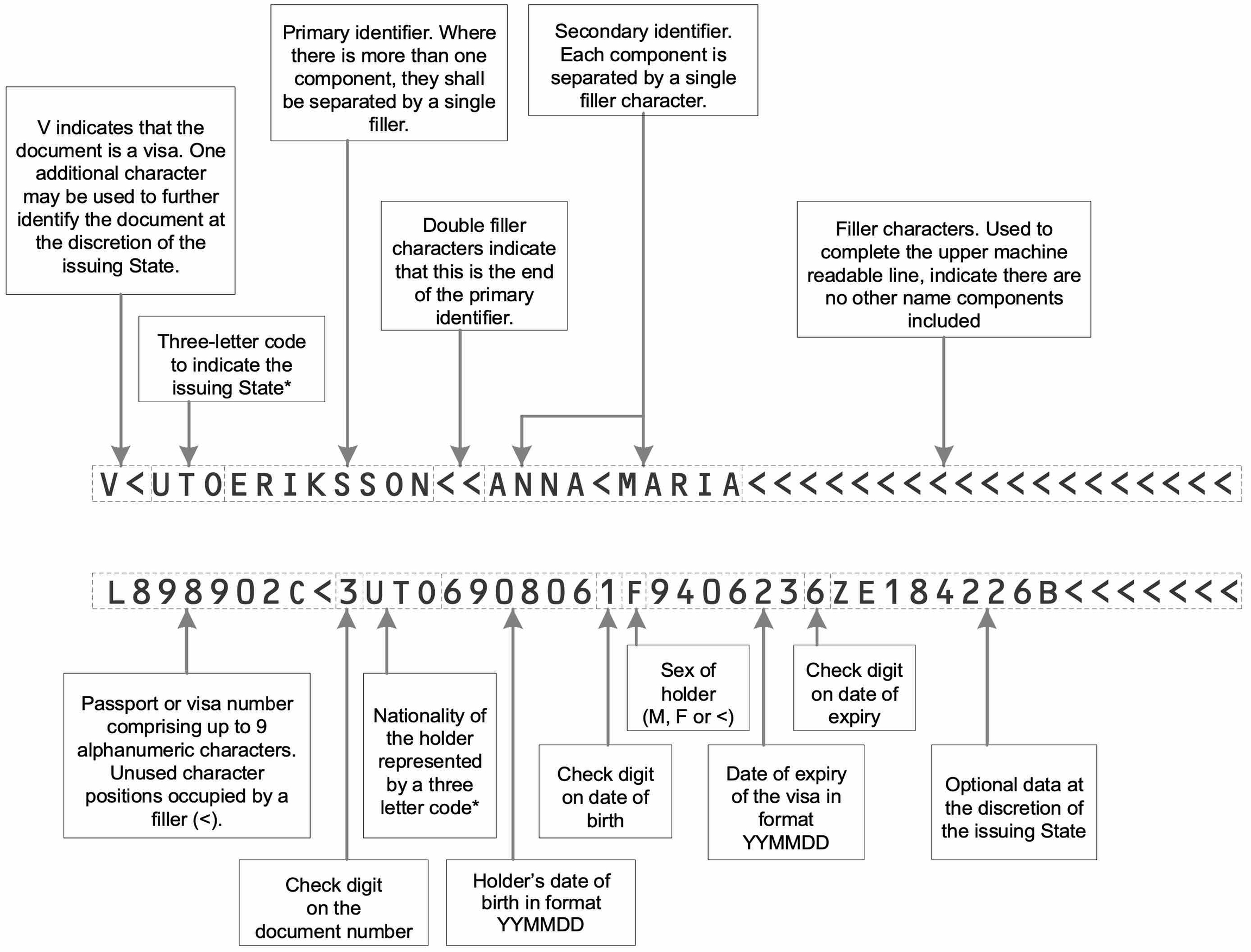

A visa conforming with the specifications contained in Doc 9303-7. The MRV is normally attached to a visa page in a passport.
Note.— (*) Three-letter codes are given in Doc 9303-3.
Dotted lines indicate data fields; these, together with arrows and comment boxes, are shown for the reader’s understanding only and are not printed on the document.
